Place Of Origin: | Linyi City, China | Standard: | ISO4427/EN12201/AS4130/ASTMD3035 |
Brand Name: | TENGYUAN | Certification: | BV/SGS/TUV/CE/OTC |
Material: | 100% Virgin Raw Material | Connecting Method: | Butt Welding; Flanged Connection |
Nominal Diameter: | DO1800mm | Marking: | Customized Laser Marking On Surface |
Nominal Pressure: | PN10 At Maximum | Manufacturing Ability: | At Least 100meters/2 days |

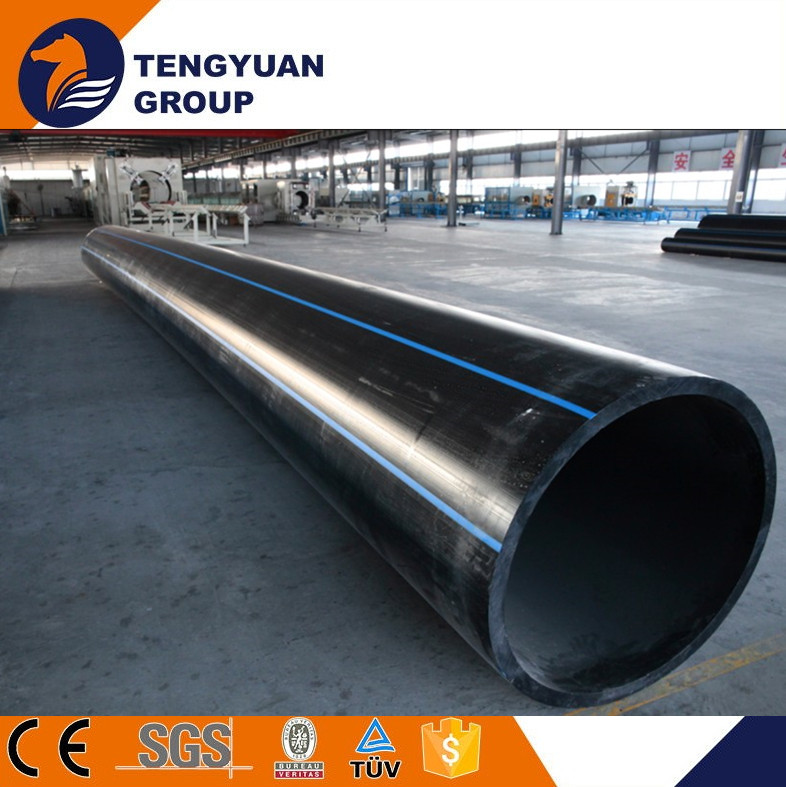

Color: | Black With Blue Stripe Or Customized | Additional Service: | ODM&OEM Service Available |
Specifications
HDPE Water Supply Pipe (PE100) | |||||
Standard: ISO4427;EN12201;ASTM D3035;AS/NZS 4130;GB/T 13663. | |||||
Nominal Pressure | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
DN （mm） | Thickness （mm） | Thickness （mm） | Thickness （mm） | Thickness （mm） | Thickness （mm） |
16 | 2.0 | ||||
20 | 2.0 | 2.3 | |||
25 | 2.0 | 2.3 | |||
32 | 2.3 | 2.4 | 3.0 | ||
40 | 2.3 | 2.3 | 3.0 | 3.7 | |
50 | 2.3 | 2.9 | 3.7 | 4.6 | |
63 | 2.3 | 3.0 | 3.6 | 4.7 | 5.8 |
75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
900 | 34.4 | 42.9 | 53.3 | ||
1000 | 38.2 | 47.7 | 59.3 | ||
1200 | 45.9 | 57.2 | 70.6 | ||
1400 | 53.5 | 66.7 | 82.4 | ||
1600 | 61.2 | 76.2 | 94.1 | ||
1800 | 69.1 | 85.7 | 105.9 | ||
Properties
Characteristics | Requirements |
Specific Gravity, g/cm3, (20℃) | 0.941-0.965 |
Longitudinal Reversion, %, (110℃) | <=3 |
Oxidation Induction Time, min, (200℃) | >=20 |
Extension Rate at Break,% | >=350 |
Melt Mass Flow Rate, g/10min (195℃，5kg) | Change of MFR by processing ± 20 % |
Hydrostatic Strength 1)20℃, Hoop Stress: PE100 12.4Mpa, PE80 9.0Mpa,100h 2)80℃, Hoop Stress: PE100 5.4Mpa, PE80 4.5Mpa, 165h 3)80℃, Hoop Stress: PE100 5.0Mpa, PE80,4.0Mpa, 1000h |
No Failure No Failure No Failure |
1. Non-toxic. The HDPE material is non-toxic and tasteless. It belongs to green building materials and never scaling through the strict health test, which can effectively improve the water quality.
2. Low flow resistance. The Smooth inner wall is easy for pipeline transportation .Under the same condition, HDPE pipe’s delivery capacity can be increased by 30%, as its roughness is much less than that of steel pipe and glass reinforced pipe.
3. No Leakage. HDPE pipe is connected in the ways of butt fusion, socket fusion and electrofusion, which means the strength of joint point is higher than tube itself .
4. Excellent Flexibility. HDPE pipes could be coiled for the small diameter products. Also, it could be slightly bended for the large diameter products, which will be much more convenient in the construction site.
5. Good resistance ability for scratch. HDPE pipe is 4 times the wear resistance of steel pipe, which means HDPE pipe has longer service life and better economical efficiency.
6. Convenient for construction. PE pipe could be installed in a variety of trenchless ways, so it is very convenient for construction and installation.
7. Long life-span. Designed 50 years’ service life under rated temperature and pressure.
8. Lower operation and maintenance costs. HDPE pipe is not only convenient to transport and install, but also greatly reduce the worker’s labor intensity and improve work efficiency.
1. Urban area water-supply work system. Large diameter HDPE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.
2. Replace cement tube, iron pipe and steel tube. Applicable for renovation project and does not need large area excavation, HDPE pipe can be widely used in old town of pipe network reconstruction.
3. Industrial materials transmission pipe. Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4. Landscaping water supply network. As landscaping project needs lots of water supply pipes, HDPE pipe is the best choice for its toughness and low costs.
5. Sewage discharge pipes. HDPE pipe have unique corrosion resistance, can be used as industrial wastewater and sewage discharged pipe.
6. Ore and mud transfers. HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe. HDPE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
High quality raw material is the core of the product.
Our products are manufactured by excellent materials like BOREALIS,BASELL, TOTAL,
DAELIM, SABIC, etc., which ensure the quality satisfying your demand.
